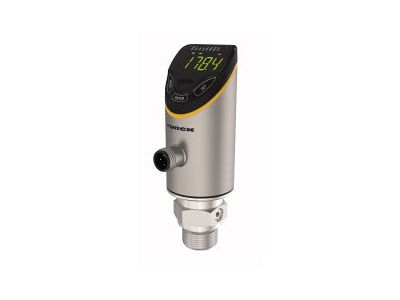

PS311-2.5V-09-2UPN8-H1141 Front-Flush Pressure Sensor, Relative Pressure: -1…2.5 Bar

PS311-2.5V-09-2UPN8-H1141

Front-Flush Pressure Sensor, Relative Pressure: -1…2.5 Bar, Operating voltage 18…33 VDC, 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Ceramic measuring cell, 18…33 VDC, NO/NC contact, PNP/NPN output, IO-Link, Pressure connection with front-flush mounted diaphragm (stainless steel), Process connection G1/2″ front-flush male thread, M12 × 1 connector device

  • SKU
    4047101528411
  • Manufacturer code
    100021450
  • Engaging pressure
    -1 - -1 bar
  • Initial setting
    -1000 - -1000 hPa
  • Switch off pressure
    2.5 - 2.5 bar
  • End setting
    2500 - 2500 hPa
  • Max. test pressure
    12 bar
  • Bursting pressure
    12 bar
  • Medium temperature
    -30 - 80 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    -100000 Pa
  • End value measuring range pressure
    250000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP66
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link
  • Rotatable
    yes
  • Flush / Non-flush
    Flush

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-47943-5dd8c1846b225c775a07c4c23bedbd6c.pdf (PDF, 902.33 kB)
