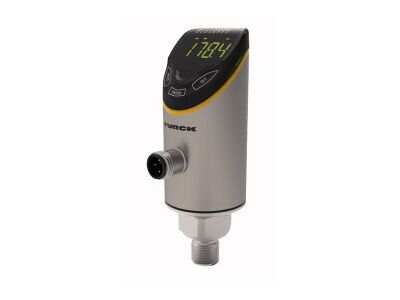

PS510-16A-08-LI2UPN8-H1141 Pressure Sensor, Absolute Pressure: 0…16  Bar

PS510-16A-08-LI2UPN8-H1141

Pressure Sensor, Absolute Pressure: 0…16  Bar, Operating voltage 18…33 VDC, 4-digit, 2-colored, 12-segment display, rotatable by 180°, Housing is rotatable after plugging the process connection, Metal measuring cell, 18…33 VDC, NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link, Process connection G1/2" male thread (manometer), Plug-in device, M12 × 1

  • SKU
    4047101484595
  • Manufacturer code
    100003741
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    16 - 16 bar
  • End setting
    16000 - 16000 hPa
  • Bursting pressure
    70 bar
  • Medium temperature
    -40 - 90 °C
  • Rated voltage Ue at DC
    18 - 33 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    1600000 Pa
  • Type of electric connection
    Other
  • Adjustable current range
    4 - 20 A
  • Degree of protection (IP)
    IP66
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link
  • Rotatable
    yes
  • Manufacturer Turck

Product attachments

file-48454-741ad0d6fbefb0503cdff291ef6baf26.pdf (PDF, 881.85 kB)
