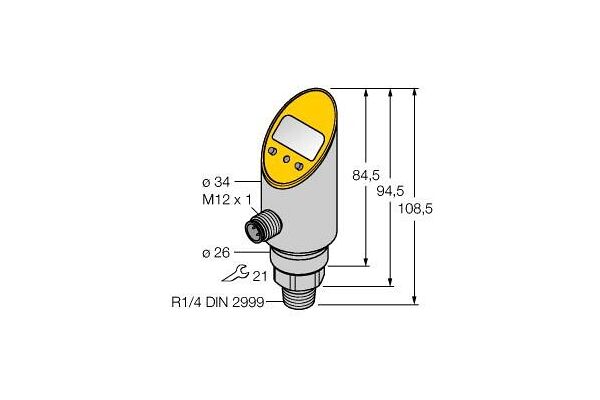

PS001R-310-2UPN8X-H1141 Pressure sensor, 2 PNP/NPN Transistor Switching Outputs

PS001R-310-2UPN8X-H1141

Pressure sensor, 2 PNP/NPN Transistor Switching Outputs, Operating voltage 18…30 VDC, Rigid process connection, non-rotatable body, Reading of adjusted values without tool, Recessed pushbutton and keylock for secure programming, Permanent indication of pressure (bar, psi, kPa, MPa, misc), Peak pressure memory, Pressure range 0…1 bar rel.

  • SKU
    4047101205206
  • Manufacturer code
    6833517
  • Engaging pressure
    0 - 0 bar
  • Initial setting
    0 - 0 hPa
  • Switch off pressure
    1 - 1 bar
  • End setting
    1000 - 1000 hPa
  • Max. test pressure
    5.5 bar
  • Bursting pressure
    5.5 bar
  • Medium temperature
    -40 - 85 °C
  • Rated voltage Ue at DC
    18 - 30 V
  • Initial value measuring range pressure
    0 Pa
  • End value measuring range pressure
    100000 Pa
  • Type of electric connection
    Other
  • Degree of protection (IP)
    IP67
  • Type of switching output
    PNP/NPN
  • Rotatable
    yes
  • Manufacturer Turck

Product attachments

file-49868-f4005eff575e9c33ad3d942763f2bede.pdf (PDF, 333.75 kB)
