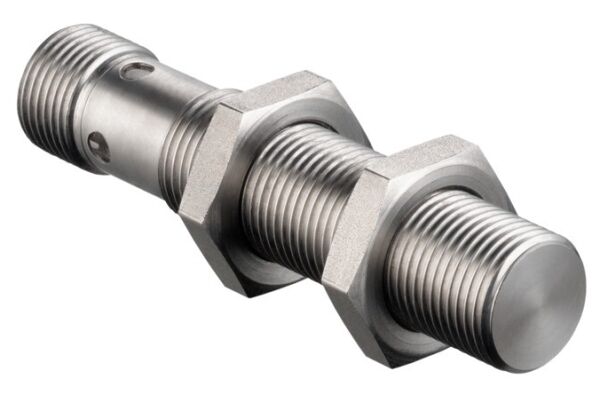

IS 212FM/4NO.5-3E0 Inductive switch

IS 212FM/4NO.5-3E0

Typ. operating range limit Sn: 3 mm; Operating range Sa: 0 ... 2.4 mm; Special version: Reduction factor 1; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, NO (normally open); Switching frequency: 100 Hz; Connection: Cable, 2,000 mm, 3 -wire; Design, housing: Cylindrical; Thread size: M12; Dimensions: 12 mm x 50 mm; Type of installation: Embedded; Housing material: Stainless steel; Certifications: c UL US

  • SKU
    2110-50128176
  • Manufacturer code
    50128176
  • Length of sensor
    50 mm
  • Diameter sensor
    12 mm
  • Flush / Non-flush
    Concise
  • Switching distance
    2.4 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    PNP
  • Type of electric connection
    Cable
  • Number of semiconductor outputs with signalling function
    1
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Type of actuation
    Other
  • Type of interface
    None
  • Type of interface for safety communication
    None
  • Construction type housing
    Cylinder, screw-thread
  • Coating housing
    Other
  • Cascadable
    false
  • SIL according to IEC 61508
    None
  • Performance level according to EN ISO 13849-1
    None
  • Max. output current at protected output
    0 mA
  • Supply voltage
    10 - 30 V
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Switching frequency
    100 Hz
  • With monitoring function downstream switching devices
    false
  • Housing material
    Metal
    Stainless steel
  • Compression-resistant
    false
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Supplyoltage (V)
    10 ... 30
  • Design
    Cylindrical
  • Switching frequency (Hz)
    100
  • Special version
    Reduction factor 1
  • Manufacturer Leuze

Product attachments

DS_IS-212FM-4NO-5-3E0_eng_50128176 (LINK)
