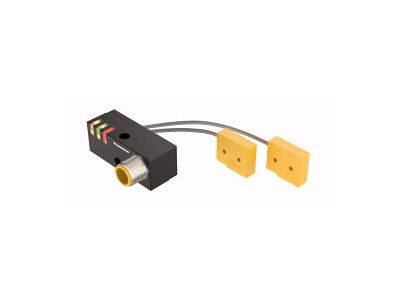

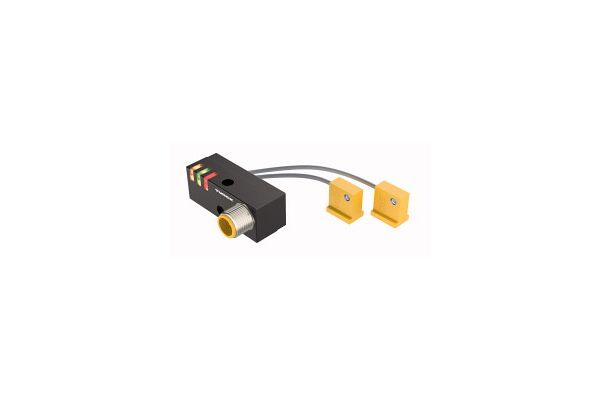

NI2-Q9.5-AP6-0.15-FS4.4X3/S304 Inductive Sensor, Monitoring Kit for Power Clamps

NI2-Q9.5-AP6-0.15-FS4.4X3/S304

Inductive Sensor, Monitoring Kit for Power Clamps, Operating voltage 10…30 VDC, Rated switching distance 2 mm, Non-flush, Cable length 0.15 m, Q9,5 power block with two connected sensors and LEDs, Relocatable block 0°…90°, with cross drilling for flexible cable routing, Plastic, PP GR-20, Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT, 2 x NO contact, PNP output, DC 4-wire, 10…30 VDC

  • SKU
    4047101081862
  • Manufacturer code
    1650065
  • Length of sensor
    47 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    2 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    PNP
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Construction type housing
    Special construction
  • Supply voltage
    10 - 30 V
  • Voltage type
    DC
  • Switching frequency
    30 Hz
  • Compression-resistant
    false
  • Width sensor
    18 mm
  • Height of sensor
    18 mm
  • Housing material
    Metal
  • Type of switching output
    PNP
  • Flush / Non-flush
    Non-flush
  • Cable length (m)
    0.15
  • Manufacturer Turck

Product attachments

file-36365-b22d01b8e413ba1acbf82d01d206e866.pdf (PDF, 952.44 kB)
