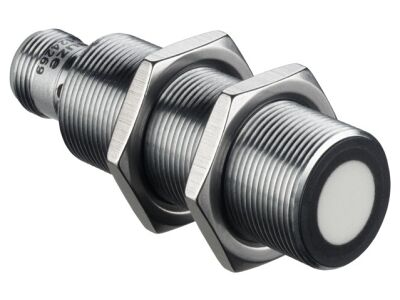

HTU418B-400/4TX-M12 Ultrasonic sensor

HTU418B-400/4TX-M12

Special version: Teach input; Operating range: 0.025 ... 0.4 m; Direction of beam: Front; Opening angle: 9 °; Supply voltage: 15 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, NO (normally open); Switching frequency: 7 Hz; Connection: Connector, M12, 5 -pin; Design: Cylindrical, M18; Dimensions: 18 mm x 63 mm; Housing material: Metal

  • SKU
    2110-50124269
  • Manufacturer code
    50124269
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Normally open contact (NO)
  • Length of sensor
    63 mm
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cylinder, screw-thread
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    15 - 30 V
  • Switching frequency
    7 Hz
  • Voltage type
    DC
    DC
    DC
    DC
  • Housing material
    Other
    Metal
  • Synchronisation possible
    false
  • Diameter sensor
    18 mm
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Other
  • No-load current
    50 mA
  • Max. output current
    150 A
  • Relative repeat accuracy
    0.15 %
  • Supplyoltage (V)
    15 ... 30
  • Design
    Cylindrical
  • Switching frequency (Hz)
    7
  • Direction of beam
    Front
  • Special version
    Teach input
  • Operating range (m)
    0.025 ... 0.4
  • Manufacturer Leuze

Product attachments

PAL_HTU418B4TX_en_50124878 (LINK)
