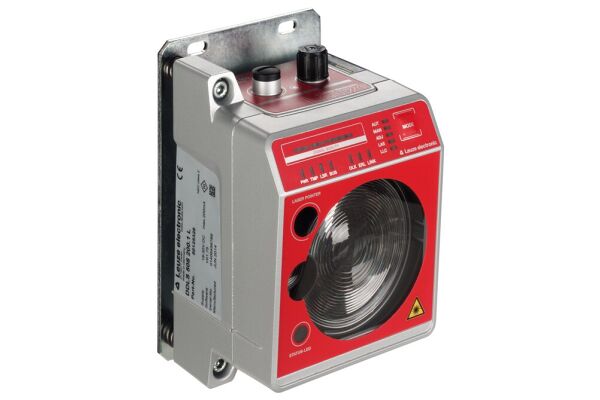

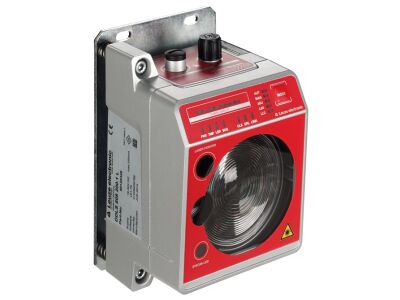

DDLS 508 120.0 H Optical data transmission

DDLS 508 120.0 H
This product is an optical data transmission unit with optional heating, pre-mounted on a mounting plate. It supports Ethernet connectivity with a transmission speed of 100 Mbit/s.
  • SKU
    2110-50131033
  • Manufacturer code
    50131033
  • Ethernet
    true
  • Bus type
    Other
  • Flush-mounted installation
    false
  • Suitable for wall mounting
    true
  • Suitable for DIN rail (top hat rail) mounting
    false
  • Socket outlet adapter
    false
  • Height
    156 mm
  • Width
    100 mm
  • Depth
    99.5 mm
  • Most suitable applications
    Long-range optical data transmission Environments with temperature variations
  • Special version
    Heating
  • Supply voltage
    18 ... 30
  • Voltage type
    DC
  • Ambient temperature
    -35 ... 50
  • Interface
    EtherNet TCP/IP
    PROFINET
  • Working range (mm)
    100 ... 120000
  • Pre-mounted
    Mounting plate
  • Manufacturer Leuze

Product attachments

DS_DDLS-508-120-0-H_eng_50131033 (LINK)
