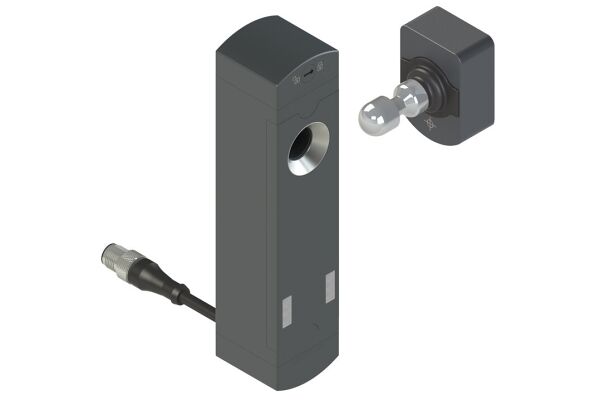

L250-P31ML-CB02M12S8-SCA Safety locking device

L250-P31ML-CB02M12S8-SCA
The L250 Series is a safety locking device with guard interlocking compliant with EN ISO 14119 (type 4). It operates on an open circuit current principle, locking the actuator when the electromagnet is activated. The safety outputs are active when the safety door is closed and locked.
  • SKU
    2110-50142128
  • Manufacturer code
    50142128
  • With status indication
    false
  • Suitable for safety functions
    true
  • Guard locking force
    2100 N
  • With escape release
    false
  • Type of guard locking
    Quiescent current principle
  • With auxiliary release
    false
  • Rated control supply voltage magnet drive DC
    24 - 24 V
  • Switching principle
    Other
  • Construction type housing
    Cuboid
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Coating housing
    Uncoated
  • Type of interface
    None
  • Type of interface for safety communication
    None
  • Type of electric connection
    Connector M12
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Ambient temperature during operating
    -20 - 50 °C
  • Degree of protection (IP)
    IP67
  • Width sensor
    40 mm
  • Height of sensor
    178 mm
  • Length of sensor
    40 mm
  • Most suitable applications
    Safety door control and interlocking
  • Series
    L250
  • Encoding level
    Low, EN ISO 14119
  • Clamping force, maximum
    2100
  • Performance Level (PL)
    Up to and including e
  • ISO Standard
    EN ISO 13849-1
  • Operating principle
    Open circuit current principle – Actuator locked if electromagnet is activated
  • Manufacturer Leuze

Product attachments

DS_L250-P31ML-CB02M12S8-SCA_eng_50142128 (LINK)
