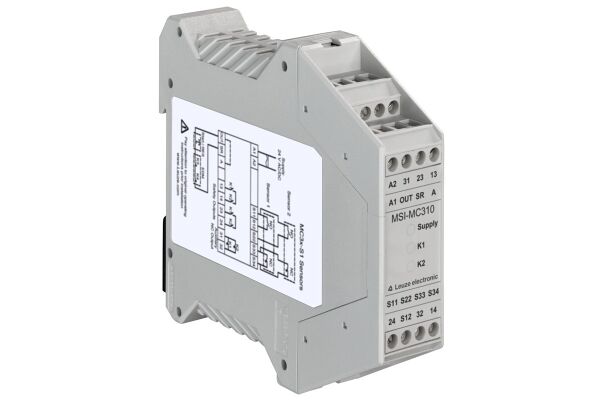

MSI-MC310 Safety relay

MSI-MC310
Safety relay designed as an evaluation unit for magnetically coded sensors with antivalent reed contacts. It features start/restart interlock (RES), stop category 0, and static contactor monitoring (EDM).
  • SKU
    2110-549941
  • Manufacturer code
    549941
  • Model
    Basic device
  • Rail mounting possible
    true
  • Type of electric connection
    Clip connection
  • Voltage type (supply voltage)
    AC/DC
  • Supply voltage AC 50 Hz
    24 - 24 V
  • Supply voltage AC 60 Hz
    24 - 24 V
  • Suitable for monitoring of emergency-stop circuits
    false
  • Suitable for monitoring of valves
    false
  • Suitable for monitoring of optoelectronic protection equipment
    true
  • Suitable for monitoring of tactile sensors
    false
  • Suitable for monitoring of magnetic switches
    false
  • Suitable for monitoring of proximity switches
    false
  • Evaluation inputs
    Other
  • Power consumption
    4.6 W
  • With start input
    true
  • With muting function
    false
  • With feedback circuit
    true
  • Type of control voltage 1
    AC
  • Number of outputs, safety related, undelayed, with contact
    2
  • Number of outputs, safety related, delayed, with contact
    0
  • Number of outputs, safety related, delayed, semiconductors
    0
  • Number of outputs, signalling function, undelayed, with contact
    1
  • Number of outputs, signalling function, delayed, semiconductors
    0
  • Voltage type (operating voltage)
    AC/DC
  • Operating voltage AC 50 Hz
    24 - 24 V
  • Operating voltage AC 60 Hz
    24 - 24 V
  • Rated switch current
    3 A
  • Type of safety according to IEC 61496-1
    None
  • Stop category according to IEC 60204
    0
  • Performance level according to EN ISO 13849-1
    Level e
  • SIL according to IEC 61508
    3
  • With approval for BG BIA
    false
  • With approval according to UL
    false
  • Width
    22.5 mm
  • Height
    99 mm
  • Depth
    113.6 mm
  • Number of outputs, safety related, undelayed, semiconductors
    2
  • Release-delay
    0.02 - 0.02 s
  • Most suitable applications
    Industrial safety systems needing stop category 0 functionality. Environments requiring start/restart interlock and static contactor monitoring.
  • Ambient temperature, operation (°C)
    0 ... 55
  • Type of switch function
    1 NO contact + 1 NC contact
  • Performance Level (PL)
    e
  • Category
    4
  • ISO Standard
    EN ISO 13849-1
  • Number of safety-related switching outputs (OSSDs) (pcs)
    2
  • Number of switching outputs
    1
  • Manufacturer Leuze

Product attachments

DS_MSI-MC310_eng_549941 (LINK)
