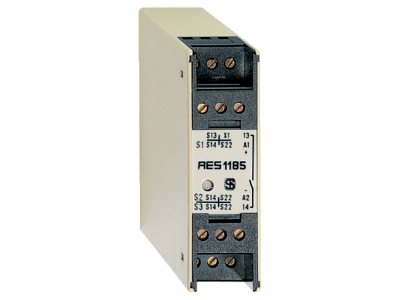

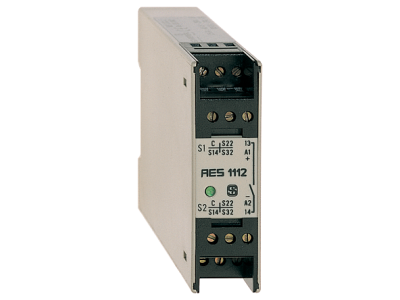

Monitoring of BNS range magnetic safety sensors
1 safety contact, STOP 0

SKU

4030661059136
Manufacturer code

101128796
Current, Switching capacity, Relay, (Auxiliary contacts), maximum

2 A
Current, Switching capacity, Safe relay outputs, maximum

8 A
Current, Switching capacity, Safe relay outputs, minimum

10 mA
Current, Thermal test current

4 A
Current, Utilisation category AC-15, Safe relay outputs

1.5 A
Current, Utilisation category DC-12, Digital output

0.1 A
Current, Utilisation category DC-13, Safe relay outputs

1 A
Type of Execution, Degree of pollution IEC/EN 60664-1

2
Type of Execution, IP Protection class, Clearance

IP54
Type of Execution, IP Protection class, General

IP40
Type of Execution, IP Protection class, clips or terminals

IP20
Type of Execution, Mechanical life, minimum,

3000000 Operations
Type of execution, mounting

Snaps onto standard DIN rail to EN 60715
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Depth, General

110 mm
Height, General

75 mm
Width, General

22.5 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Conduction resistance, maximum

40 Ω
Electrical data, Contact resistance, maximum

0.1 Ω
Material, contacts, electrical

AgCdO
Housing material

Glass-fibre reinforced thermoplastic, ventilated
Standard, EMC rating

EMC-Directive
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN IEC 60204-1
EN IEC 60947-5-3
BG-GS-ET-14
BG-GS-ET-20
EN IEC 62061
EN IEC 60947-5-5
EN IEC 60947-1
Note, contact resistance

in new state
Note, General

Inductive loads (e.g. contactors, relays, etc.) are to be su
Review, safety parameters

for max. 50,000 switching cycles/year and max. 80% contact l
Note, applications

Safety sensor
Guard system
Note, Wiring diagram

The wiring diagram is shown with guard doors closed and in d
To secure one or a number of guard doors up to PL c and Cate
Monitoring a number of guard doors using magnetic safety sen
Number, LED's

1
Number, NC contacts

4
Number, NO contacts

2
Number, Safety contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
BG
Power, electrical consumption

2.4 W
Type of electric connection

Screw terminals M20 x 1.5
rigid or flexible
Review, Resistance to vibrations to EN 60068-2-6

10...55 Hz, Amplitude 0.35 mm, ± 15 %
Review, restistance to shock

30 g / 11 ms
Safety parameters, Category, EN ISO 13849, Relay outputs

1
Safety parameters, Mission time, Relay outputs

20 Year(s)
Safety parameter

EN IEC 61508
EN ISO 13849-1
Safety parameters, Performance Level, Relay outputs

c
Safety values, PFH value; Relay outputs

0.00000114 /h
Safety parameters, Safety Integrity Level (SIL), Relais outputs

1
Safety parameters, Stop-Category

0
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661059136
SAP, product group

Initial
SAP, gross weight

160.000 g
SAP, net weight

160.000 g
Indication, Operating state, LED

Authorised operation
Temperature, Ambient temperature[generated product variant]

+0 ... +55 °C
Temperature, ambient temperature, maximum

55 °C
Temperature, ambient temperature, minimum

0 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Drop-out delay in case of emergency stop, typically

20 ms
Time, Drop-out delay in case of power failure, typically

80 ms
Time, Frequency range

50 Hz
60 Hz
Time, Pull-in delay at automatic start, maximum, typically

100 ms
Time, Pull-in delay at RESET, typically

20 ms
Voltage, Rated control voltage at AC 50 Hz, maximum

253 VAC
Voltage, Rated control voltage at AC 50 Hz, minimum

195.5 VAC
Voltage, Rated control voltage at AC 60 Hz, maximum

253 VAC
Voltage, Rated control voltage at AC 60 Hz, minimum

195.5 VAC
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated operating voltage

230 V
Voltage, rated operating voltage

230 VAC
Voltage, Switching capacity, Relay (auxiliary contacts), maximum

24 VDC
Voltage, Switching capacity, Safe relay outputs, maximum

250 VAC
Voltage, Switching capacity, Safe relay outputs, minimum

10 VDC
Voltage, type

AC
Voltage, Utilisation category AC-15, Safe relay outputs

250 VAC
Voltage, Utilisation category DC-12, Digital output

24 VDC
Voltage, Utilisation category DC-13, Safe relay outputs

24 VDC
Web Hinweis (Textangabe)

Discontinued product
Web Type

Product range
Selection (Yes/No), Automatic reset function

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection (Yes/No), Reset after disconnection of supply voltage

Yes
Selection, (Yes/No), Wire breakage detection

Yes
Type of application, Terminal designation

IEC/EN 60947-1
Standard, climatic stress

EN 60068-2-3
BG-GS-ET-14
Tightening torque, torque, clips

0.6 Nm
