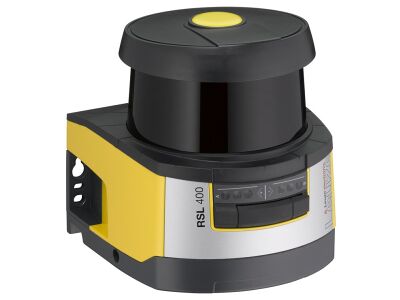

This safety laser scanner, compliant with AIDA standards, features a 270-degree scanning angle and adjustable protective field resolution. It supports up to 100 switchable field pairs and offers 4 protective functions. The scanner operates within a range of 0 to 3 meters and a warning field range of up to 20 meters. It is designed with a PROFINET interface and has specific connection types.

SKU

2110-53800316
Manufacturer code

53800316
Scanning interval

0.09 Hz
Number of safety fields

4
Operation agent-safety class

Safety class 3
Width sensor

140.2 mm
Height of sensor

200 mm
Length of sensor

142 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 50 °C
Response time

80 s
Transmission range of the safety field

0 m
Transmission range of the alert field

0 m
Type of safety according to IEC 61496-1

3
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

905 nm
With restart blockage

false
Suitable for safety functions

false
Most suitable applications

Industrial automation systems requiring safety compliance Environments needing multiple protective functions and adjustable field resolutions
Supplyoltage (V)

24
Resolution of protective field (adjustable) (mm)

30
40
50
60
70
150
Performance Level (PL)

d
ISO Standard

EN ISO 13849-1
Special version

AIDA-compliant
Connection 1

PROFINET push-pull 24V, 5 -pin
Connection 2

PROFINET RJ45 push-pull IEC 61076-3-117 var. 14
Operating range (m)

0 ... 3
