Q45UBB63DACQ6 Ultrasonic Sensor, diffuse mode sensor, With Switching Output

Q45UBB63DACQ6

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 12…24 VDC, Max. range 1400 mm, Start and End of switching range adjustable via teach button, NO/NC output function, Response time, adjustable, Pump function, PNP/NPN transistor output (NO contact), Aperture angle of sonic cone 15 °, Blind zone: 10 cm, Range: 140 cm

  • SKU
    0662488441340
  • Manufacturer code
    3044134

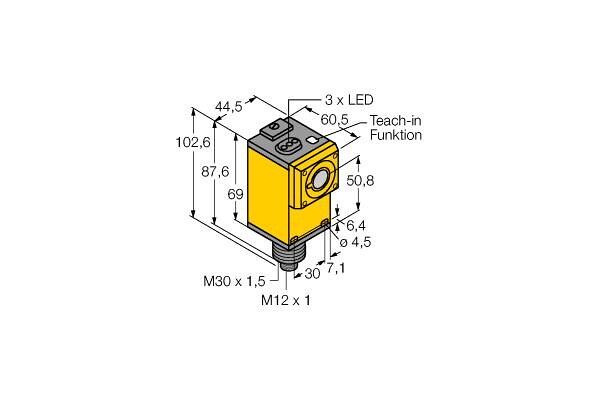

  • Width sensor
    44.5 mm
  • Height of sensor
    102.6 mm
  • Length of sensor
    60.5 mm
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    12 - 24 V
  • Switching frequency
    50 Hz
  • Measuring range length
    100 - 1400 mm
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • NO/NC
    NO contact
  • Switching output
    PNP/NPN

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-36276-07f4fa691981aad51dc384a5d8966b20.pdf (PDF, 329.37 kB)
