Q45UBB63DA Ultrasonic Sensor, diffuse mode sensor, With Switching Output

Q45UBB63DA

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 12…24 VDC, Max. range 1400 mm, Cable length 2 m, Start and End of switching range adjustable via teach button, NO/NC output function, Response time, adjustable, Pump function, PNP/NPN transistor output (NO contact), Aperture angle of sonic cone 15 °, Blind zone: 10 cm, Range: 140 cm

  • SKU
    0662488441289
  • Manufacturer code
    3044128

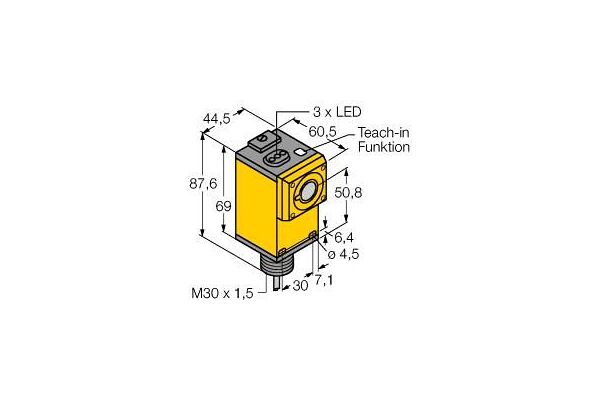

  • Width sensor
    44.5 mm
  • Height of sensor
    87.6 mm
  • Length of sensor
    60.5 mm
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    12 - 24 V
  • Switching frequency
    50 Hz
  • Measuring range length
    100 - 1400 mm
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • NO/NC
    NO contact
  • Switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
