Q45UBB63BC W/30 Ultrasonic Sensor, diffuse mode sensor, With Switching Output

Q45UBB63BC W/30

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 12…24 VDC, Max. range 3000 mm, Cable length 9 m, Start and End of switching range adjustable via teach button, NO/NC output function, Response time, adjustable, Pump function, PNP transistor output (NO), Aperture angle of sonic cone 12 °, Blind zone: 25 cm, Range: 300 cm

  • SKU
    0662488463618
  • Manufacturer code
    3046361

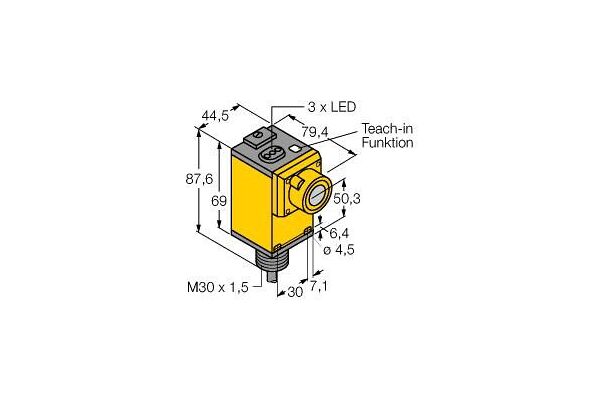

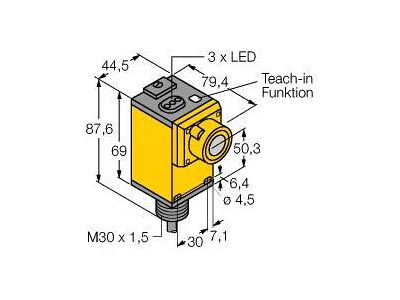

  • Width sensor
    44.5 mm
  • Height of sensor
    87.6 mm
  • Length of sensor
    79.4 mm
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    12 - 24 V
  • Switching frequency
    50 Hz
  • Measuring range length
    250 - 3000 mm
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP
  • Cable length (m)
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-37571-e9388be4c783852c658a99c6ee35296e.pdf (PDF, 265.27 kB)
