Q45UBB63BCQ Ultrasonic Sensor, diffuse mode sensor, With Switching Output

Q45UBB63BCQ

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 12…24 VDC, Max. range 3000 mm, Start and End of switching range adjustable via teach button, NO/NC output function, Response time, adjustable, Pump function, PNP transistor output (NO), Aperture angle of sonic cone 12 °, Blind zone: 25 cm, Range: 300 cm

  • SKU
    0662488463625
  • Manufacturer code
    3046362

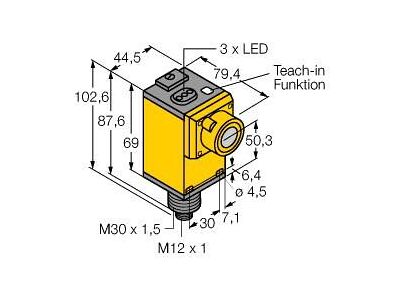

  • Width sensor
    44.5 mm
  • Height of sensor
    102.6 mm
  • Length of sensor
    79.4 mm
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    12 - 24 V
  • Switching frequency
    50 Hz
  • Measuring range length
    250 - 3000 mm
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-45434-2b105db5612eff204c727c7431015eb9.pdf (PDF, 250.35 kB)
